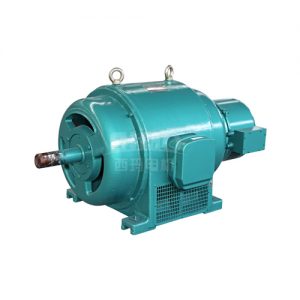

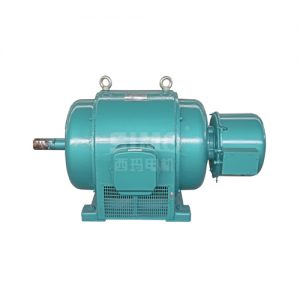

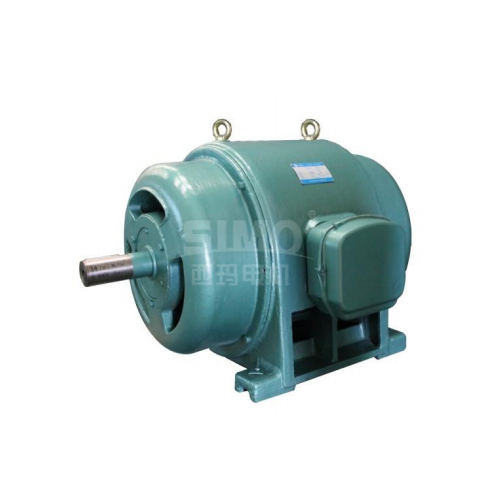

High Voltage Electric Motor

JS high voltage electric motor could drive different machinery such as blowers, compressors, water pumps, crushers, cutting machine tools, transportation machinery and other equipment. It can serve as the prime movers in coalmines, machinery industry, power plants and various types of industrial and mining enterprises.

Type: JS

Power: 1050kW

Voltage: 11kv motor

Speed: 10poles

Efficiency: IE2

Frequency: 50Hz

Insulation class: B

Protection class: IP21

Mounted type: B3

The bearing adopts rolling bearing. JS 10kv high voltage electric motor can be made into double shaft extension according to user’s requirements, any one of the shaft extension can be used to convey the rated power of the motor.

Structure and characteristics:

• The bearing adopts rolling bearing. and the brand of bearing grease is lithium-based grease ZL-3. Viewed from the shaft extension end of the motor, the motor terminal box is on the right side of the base.This series of motors comply with the regulations of JB563-64 and JB564-64 issued by the Ministry of Machinery Industry.
• JS 10kv high voltage electric motor can be made into double shaft extension according to user’s requirements, any one of the shaft extension can be used to convey the rated power of the motor. The basic installation type IMB3 structure, JS series 11kv motor has two end cover bearings and a cylindrical shaft extension, which can be connected to the driven machinery by a coupling. This series of motors are of protective type, and can also be made into ducted ventilation type according to user requirements. The ventilation system adopts symmetrical radial ventilation on both sides.
• The motor type is horizontal, with a cylindrical shaft extension, and can also be made into a double shaft extension motor. The motor allows direct starting at full voltage. The main insulation of the stator coil of the high-voltage motor is wrapped with epoxy powder mica tape, vacuum-dried, and the whole motor is processed by VPI technology.

Model meaning

For example: JS115-6 means squirrel cage rotor asynchronous motor, frame size is 11, iron core length is size 5, 6 poles.

FAQ

Is this series motor is 380v?

They are 380V, 6KV, 10KV.

How long is the warranty period of the motor?

All motors are guaranteed for two years.

What kind packing do you offer?

Each motor will be packed with wooden cases.

Where is your factory?

Xi’an city, Shaanxi province.

What about delivery time?

JS motor is 50 days normally.
