Speed：3000rpm, 1500rpm, 1000rpm
Mounting：IMB3 and other mounting type available
Connection Mode: 3kW and below for Y connection; other power for △ connection
Temperature range: -15°C ~40°C
Humidity: No above 90% while 25℃

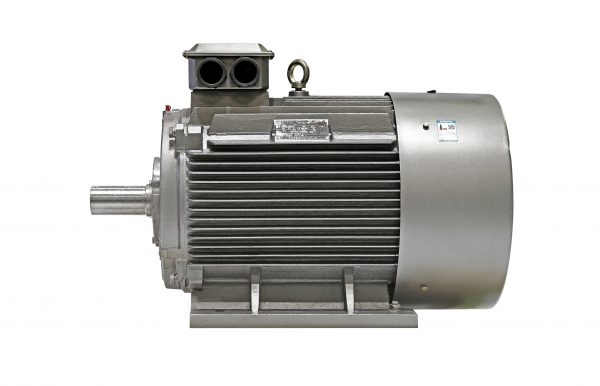

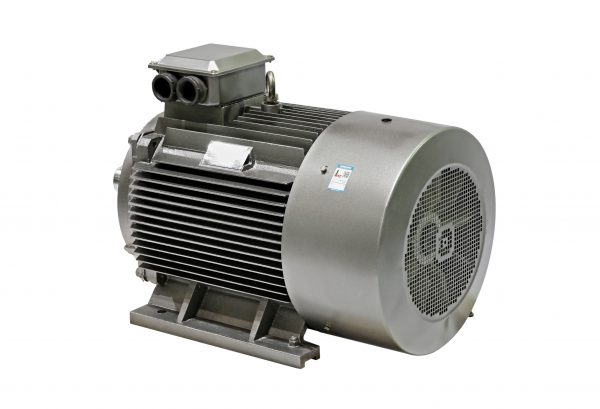

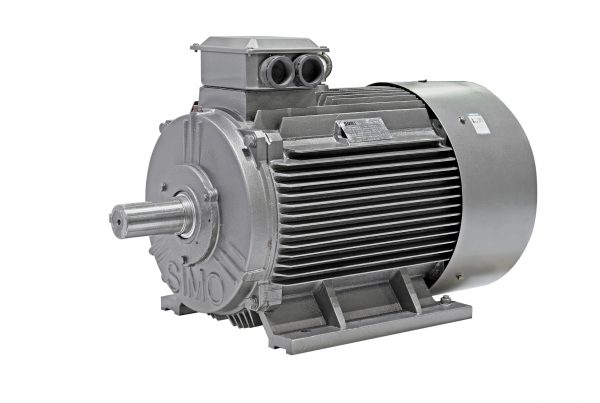

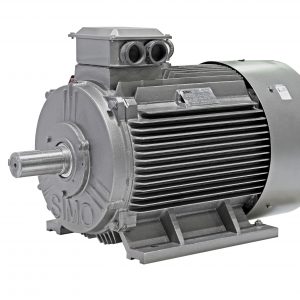

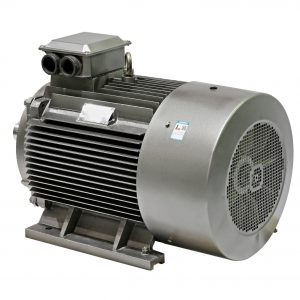

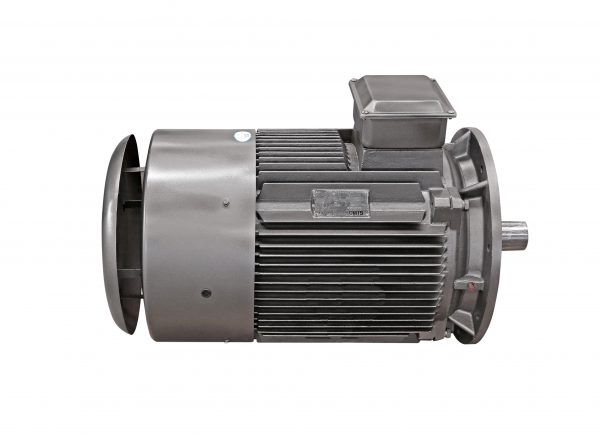

The YE2/YE3 series (IP55) high efficiency three-phase asynchronous motor is a fully enclosed self-ventilated three-phase asynchronous motor with high energy efficiency limit. This series of motor mounting dimensions is the same as Y and Y2 series, which are the replacement products of Y and Y2 series motors.
The installation size and power level accord with IEC standards. The terminal box is at the top outlet. The efficiency value fully achieve the energy efficiency level 3 (YE3 is energy efficiency level 2) requirements in GB18613-2012 《Energy Efficiency Limits and Energy Efficiency Grades of Small and Medium-sized Three-phase Asynchronous Motors》of energy efficiency 3 class (YE3 is 2 class energy efficiency ),keeping touch with international IEC60034-30《Single speed three-phase squirrel cage induction motor efficiency classification》of IE2 (YE3 is IE3).This series of motors adopts cold-rolled silicon steel sheet as magnetically conductive material,the efficiency according with European Eff1 standard .To achieve advanced technology in domestic and abroad . This motor will advertise greatly replacement products.
The motor has a shaft extension, which can be designed two shaft extension according to customers ,The second shaft extension can also transmit the rated power, but it can only be driven by the coupling.
It can also supply other power, voltage, frequency, wet heat (TH), protection class and other motors ,According to user needs.
High efficiency 、energy saving 、low noise 、high torque、low vibration、light weight、reliable running 、easy maintenance
Y2 series motor are widely used in many places ,such as drilling machines 、Pumps 、fans 、mixer、transport machines 、agriculture machines etc
