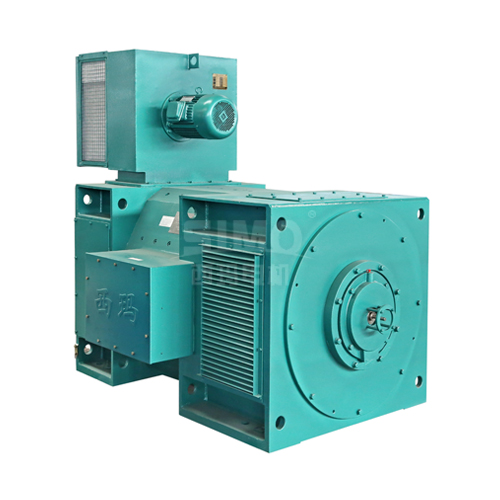

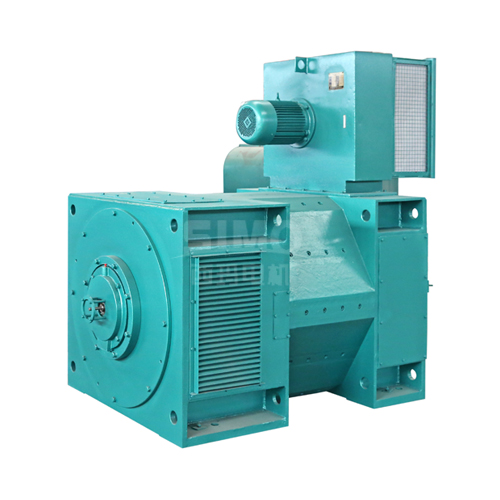

Z Series DC Motor

Z series DC motor used polygon structure so that the using rate of the stators inner space is very high. The magnet yoke is laminated style, suitable for silicon controlled commutate power supply and it can endure pulsating current and rapid change of current (load change). Magnetic poles are fixed by precise orientation. All the motors of system are with compensate winding, so the reverse performance is very well.

The insulation class of the motor is F, using of reliable insulation structure and nonmenstruum vacuum pressure impregnated, guaranteeing the stable perfomiance of insulation and good heat dissipation.

Electrical performance:

1 .Data listed in the technical data sheet should be employed under the following conditions:

a)Altitude above sea level maximal1,000m;

b)Cooling air temperature maximal 40℃; Cooling water temperature maximal 32℃;

c)The motor can be installed under foul situation, but the right cooling method of cooling method of cooling and defend class must be chosen. If the situation is special, need humid tropic, please negotiate.

d)The motor is suitable for 3-phase bridge style smoothing reactor, also can adopt power supply of DC generator.

e)The motor accord with GB755 “The ration and perfomiance of the rotating electrical machinery”, IEC60034-1 uThe ration and performance of the rotating electrical machineiy” and JB/T9577 “Technical requirements of Z series middle motor electromotor”;

2.The standard rated voltage of the electromotor are 440V，550V，660V( 750V etc. Voltage of other classes can also be derived according specific situation, but must be negotiated when ordering.

3.The basic excitation style is separately excited, the excited voltage is 220V, Voltage of other classes can also be derived according specific situation, but must be negotiated when ordering.

4.Short time overload capacity of motor.

Z series DC motor can be divided into two kinds according to the use，

First kind (A): ordinary industrial DC motor; Second kind (B): metal rolling mill DC motor.

a) First kind (A) motor can endure the overload (1min) according to table 3.
