Speed ：3000rpm、1500 rpm、1000 rpm、750 rpm、600 rpm、500 rpm、400 rpm、300 rpm、200 rpm
Excitation type： separated excitation
Altitude: no above 1000m
The ambient temperature: no more than 40℃

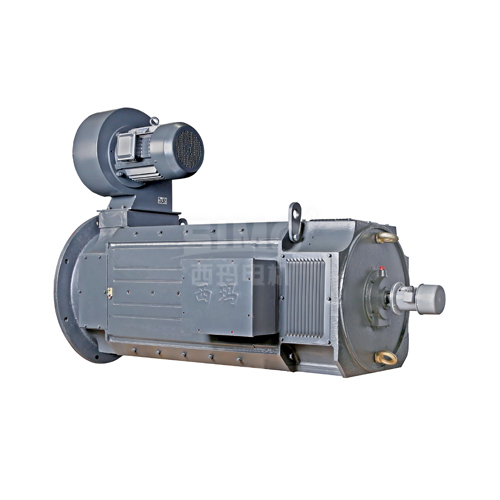

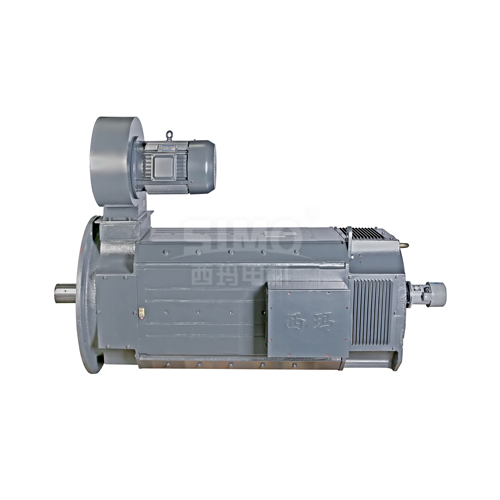

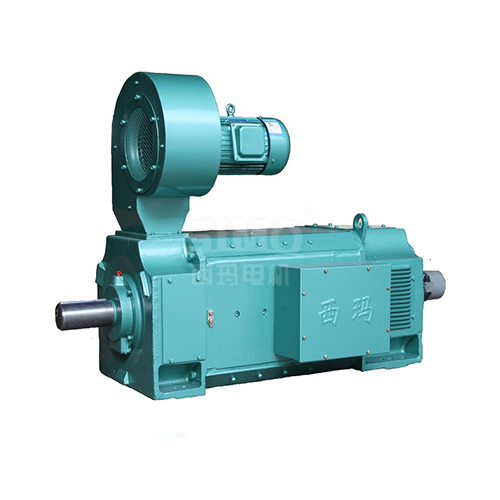

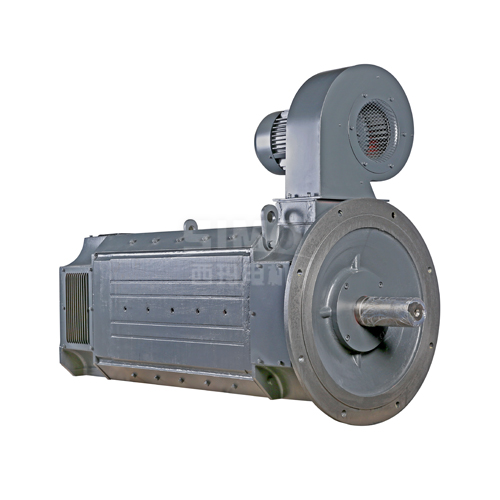

Z4 DC motor (Center height 400-450mm) complied with JB/T6316-92; and Z4 motor with center Height 500-710mm has been developed as new midium size electric dc motor.
Our motor can be designed by customers for power , voltage, speed, excited
This motor not only accord with international standard GB/T755《rotating
electric motor 》and also keeping with Germany VDE0530.
Z4 DC motor not only can generate direct current power, but also is suitable to supply static current power. And the small inertia, good dynamic performance, z4 motor can suffer a higher rating of load, especially suitable for stepless speed control , high efficiency, automatic steady speed, smart control system, with the international advanced level.
Suitable for wide speed control, overloading no more than 1.6 times . Constant power of weak magnetic adjust up speed to 1~3 times of rated speed.
Constant torque reduces the armature voltage down to 20 r/min. It can be widely used in metallurgical industry, rolling mills, metal cutting machine tools, paper, dyeing, printing, cement, plastic extrusion machinery and other industrial sectors.
